Passive Current transformer Series IN

Instrument transformers (PIN version)

REO Passiver Stromwandler Baureihe IN PIN-Version


Data sheet

All data and configurations can be found in our product data sheet.

Passive Current transformer Series IN

Instrument transformers (PIN version)

Description

The growing development and spread of electronic devices with high working frequencies requires the use of current transformers with an extended frequency range.

This demand can be met with specially selected materials in conjunction with optimized design.

Advantages (Electrical)

  • PIN connection according to
  • UL 94 V-0
  • Current transformers for precise current measurements
  • Measurements in the frequency range 16 2/3 to -50kHz
  • Use of nanocrystalline and high-quality cores
  • High-quality wires temperature class F (155°C), H (180°C)
  • High-quality UL listed insulating materials (e.g. UL94-V0)
  • Safe electrically isolated primary
  • and secondary circuits
  • High reliability
  • Non-critical in the event of overload currents
  • Robust housing designs (for horizontal/vertical mounting)
  • Shock and vibration tests in accordance with DIN EN 61373
  • Category 1 Class B
  • Variable connections: clamps, plugs, flat-cable plugs or cables
  • Wide range of housings with various push-through openings

Unique Selling Point

  • assembly-friendly designs
  • versatile range of housings with different through-holes

Typical applications

Industry,Renewable energy sources,Railway engineering,Metrology and testing techniques,Energy,automation and building technology

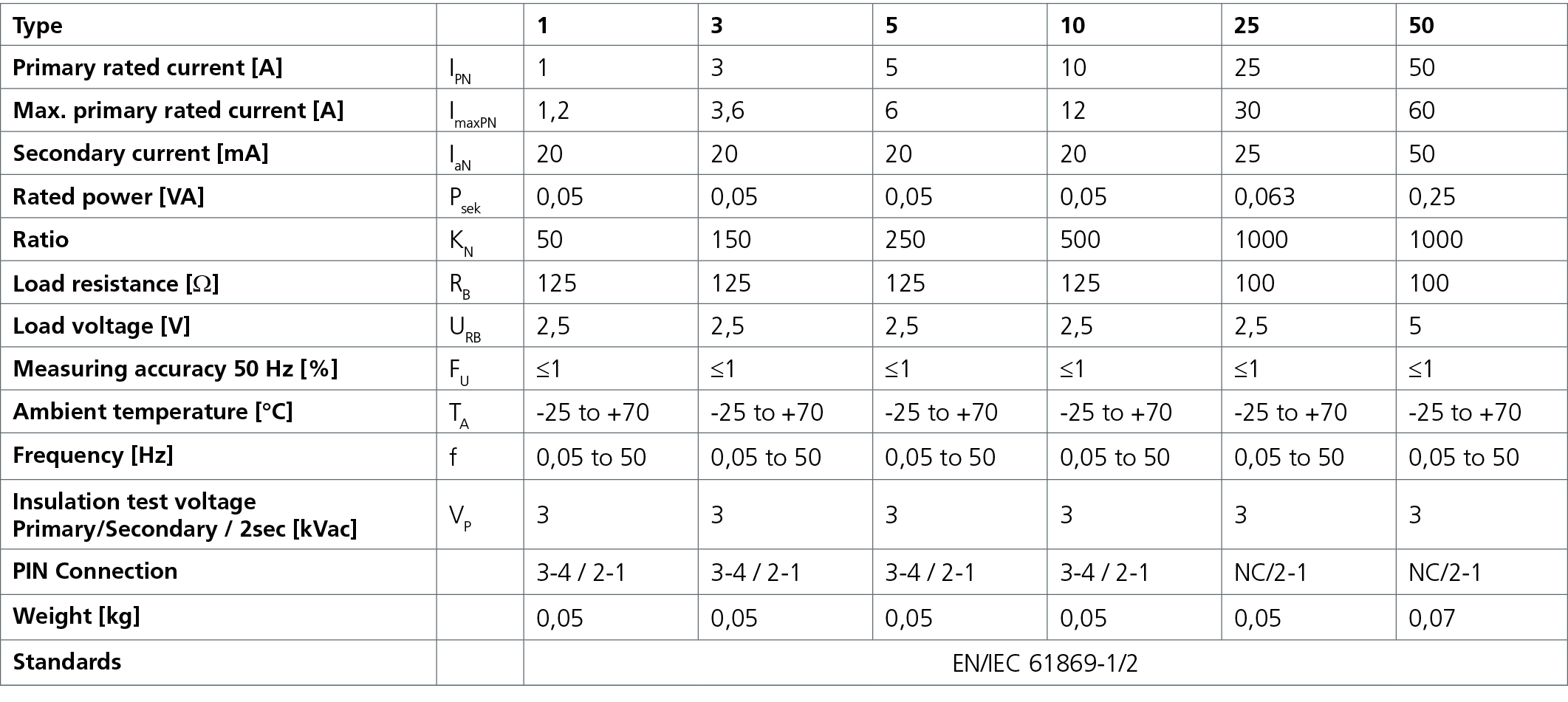

Technical specifications

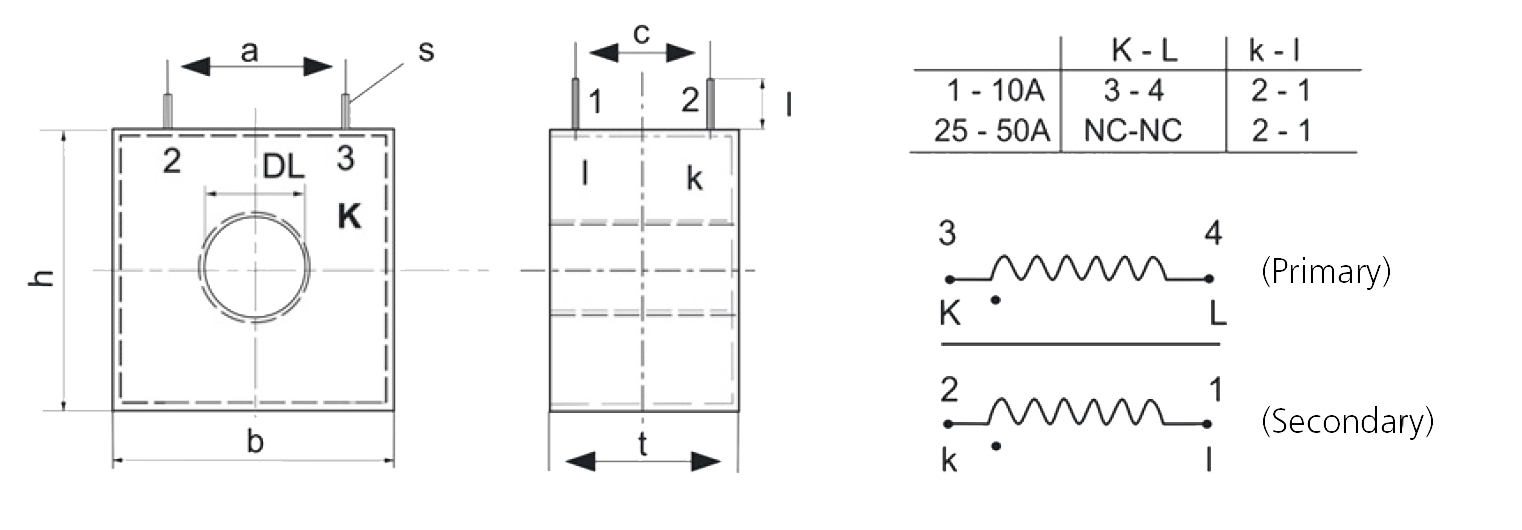

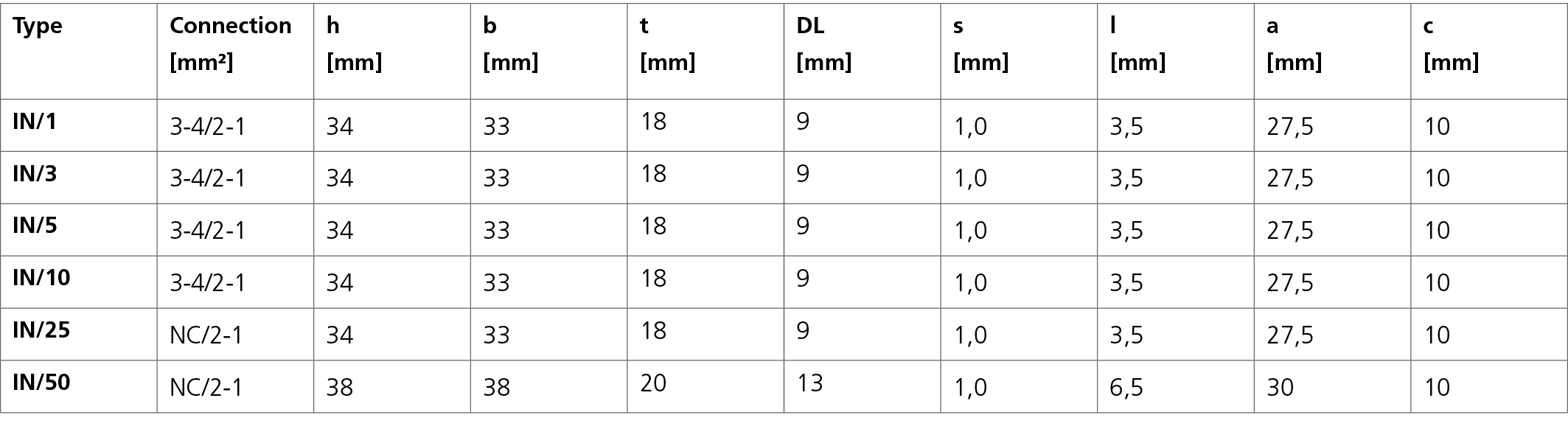

Dimensions in mm
