Resistor REOHM BW 156
max continuous power: 1500 W
Description
Braking resistor for drives with frequency converters of low to medium power. Mounting inside and outside the control cabinet is possible.
Advantages
- quick connection
- short-circuit protected
- small dimensions with high performance
- very good heat dissipation
- high resistance at overload
- optionally with contact protection and temperature switch optionally also for aggressive environments (e.g. salt mist)
- installation also possible outside the control cabinet compact
- also with UL certification see overview “UL-certified products from REO”

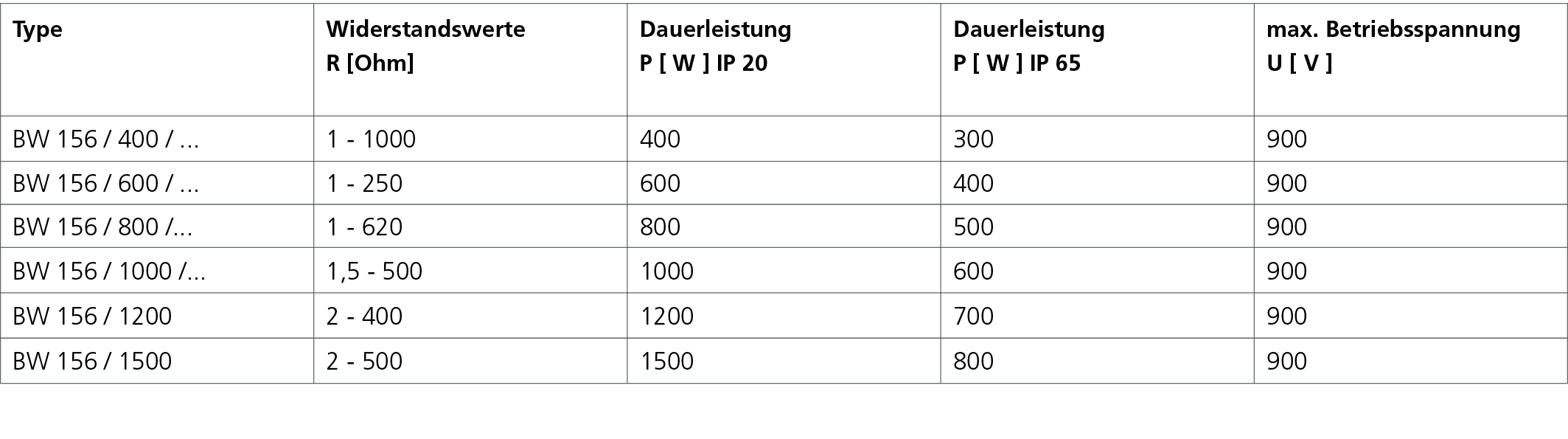

Technical data
In the event of destruction, the resistor becomes high-impedance. Each series is available with a temperature switch. The specified performance values were measured at a horizontal position of the resistors in the air with a distance of min. 100mm to the substrate. The power values refer to the standard products with a normal tolerance of +/- 10% at an ambient temperature of 20°C.
