PHASE ANGLE CONTROLLER REOVIB SMART SYSTEM basic module

IP 00, for assembly on a DIN rail

REO Schwingfoerdertechnik Phasenanschnittsteuerung REOVIB Smart System

完整的目录

下载我们丰富的产品目录,发现更多REO产品

Data sheet

All data and configurations can be found in our product data sheet

PHASE ANGLE CONTROLLER REOVIB SMART SYSTEM basic module

IP 00, for assembly on a DIN rail

Description

In open design for assembly on a DIN rail with an output channel of max. 6A with fill level/overflow control. The basic module has a supply for expansion modules, so further output modules up to a total current of 10A can be connected.

Advantages

  • Cost-effective phase-angle control systems with vital functionality
  • Can be used as a standalone device or in modular design for control of a complete feed system
  • Output current up to 6A
  • DIN rail mounting
  • Versions available with fill level/overflow control

Typical applications

Weighing systems, multiple-head weighing wagon, conveyor & assembly automation, sorting systems

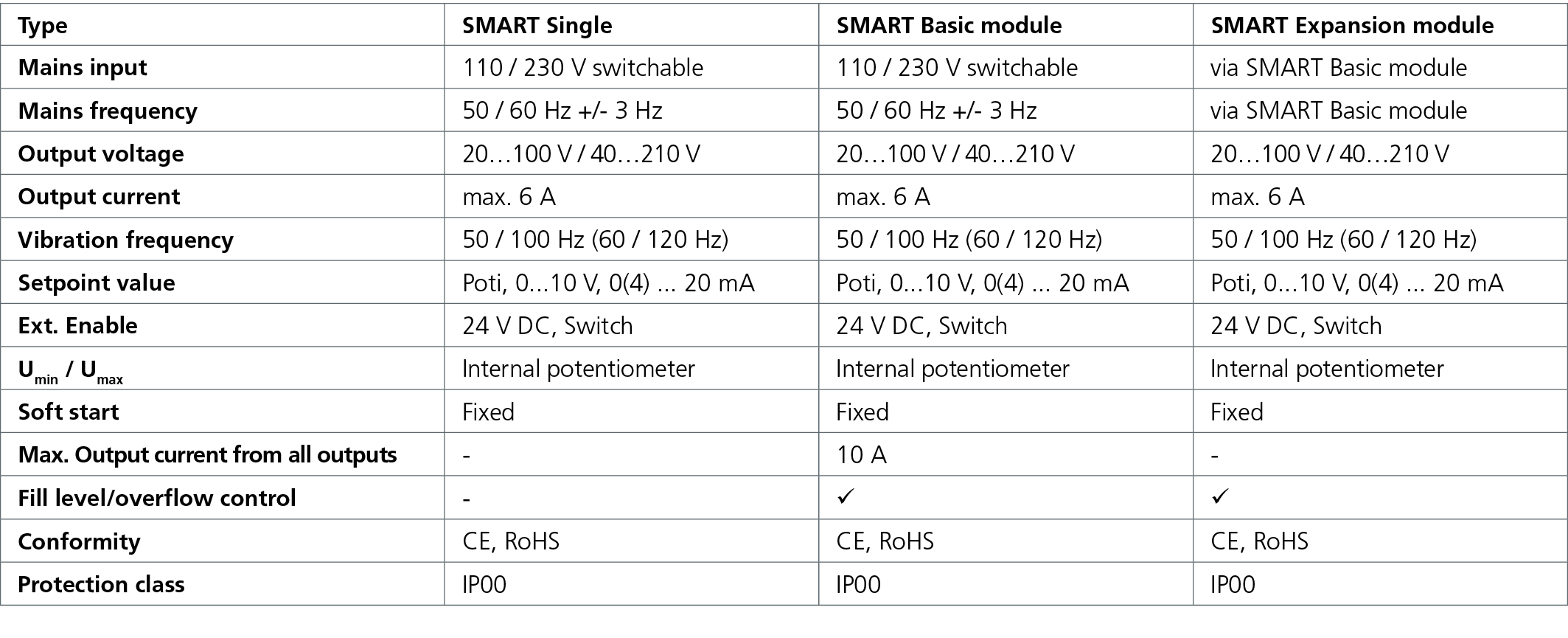

Technical specifications
