Data sheet

All data and configurations can be found in our product data sheet

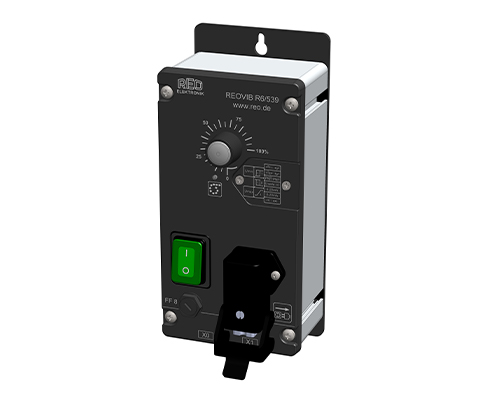

PHASE ANGLE CONTROLLER REOVIB RTS R6/539

IP54 design for mounting directly on the vibrating machine

Description

Devices in the REOVIB RTS series are available as housing designs with protection class IP54 for direct assembly to the application. The maximum output current is 6 A. Devices have mains voltage compensation with constant vibration amplitude, a relay output for status display, and an adjustable soft starting ramp time, and the has a fill level control/overflow controller (Devices with fill level control/overflow controllers include an overflow relay to link additional control devices).

The control devices are available in different versions:

  • Input cable/output cable
  • Input cable/output socket

Advantages

  • Inexpensive phase-angle control systems with extended functionality.
  • IP54 design for mounting directly on the vibrating machine
  • Output current up to 6 A
  • Versions available with fill level/overflow control
  • Mains voltage compensation with constant vibration amplitude
  • Adjustable soft starting ramp time

Typical applications

Conveyor & assembly automation, conveyor technology, sieving technology

*For IP54
