REOVIB Accelerometers SW

IP 54, IP 65, Aluminum Case

Description

Sensor for measuring accelerations in the range of 0 … 35 g (frequency dependent). The sensor includes a piezoelectric element with a downstream amplifier acceleration . The accelerations are detected by the piezoelectric element and converted into a voltage proportional to the acceleration.

The amplifier takes the measurement signal in a form of 100 /150/ 300 /600/ 2000 mV / g. All components are housed in a robust aluminum housing and completely sealed. The electrical connection is via a 4-wire (or 3 -wire), shielded cable. The shield must be grounded at the signal processing device .

Advantages

  • Aluminum Case
  • Low-cost versions Available
  • For harsh Environmental conditions ( optional)
  • Low weight
  • Plug + Play functionality with REOVIB MFS 168 + 268 controllers and measuring devices REOVIB 6050 and 6100

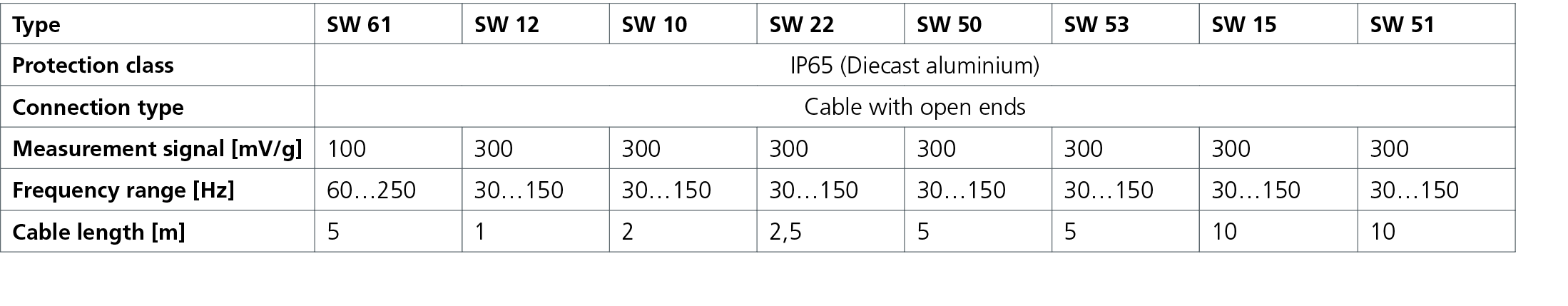

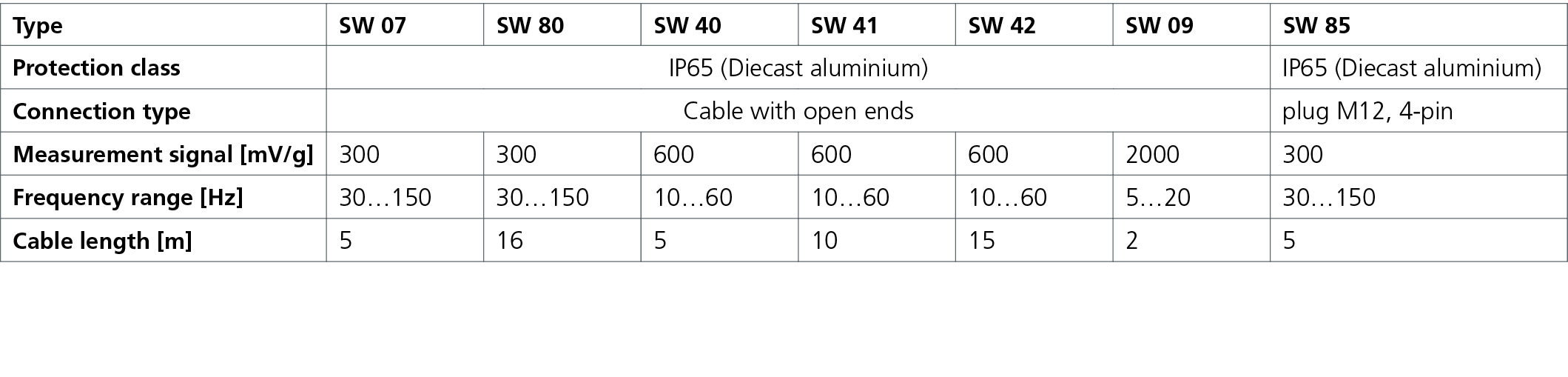

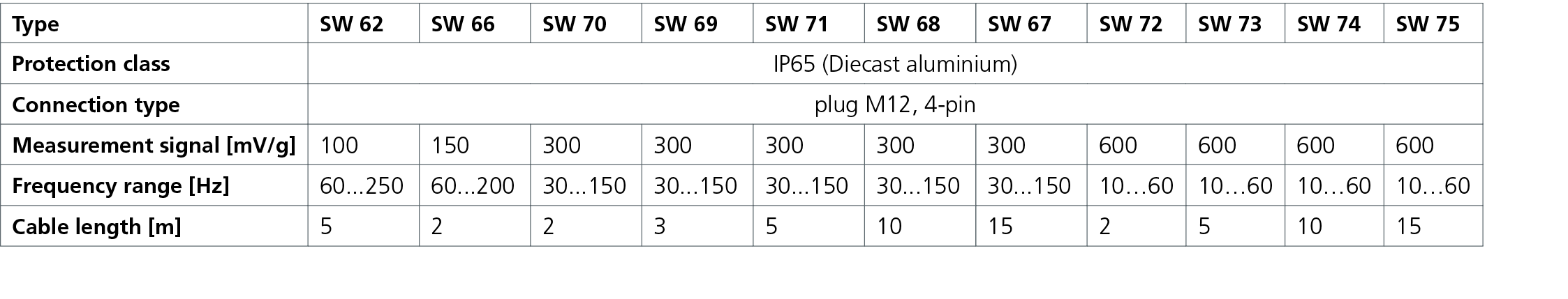

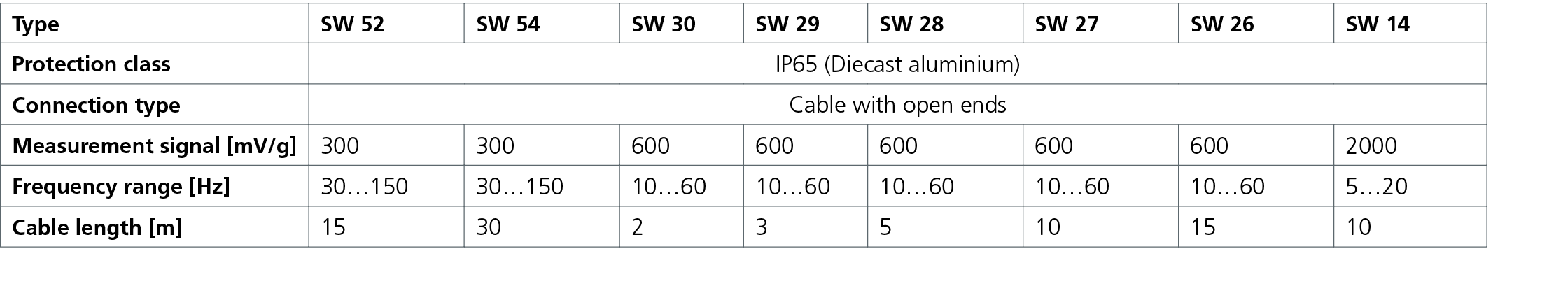

Technical specifications


Suitable for this product

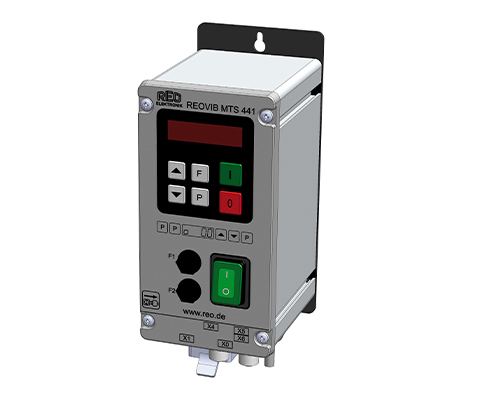

REO Schwingfoerdertechnik Programmierbare Phasenanschnitt­steuerung REOVIB MTS 441
