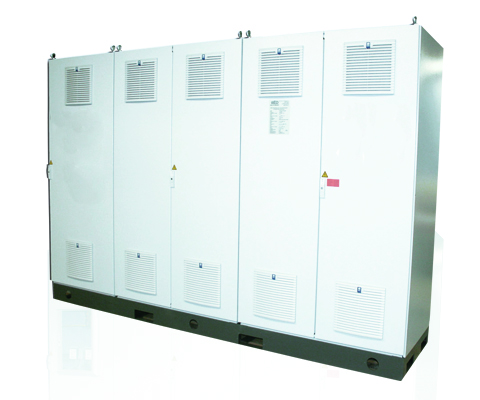

Ohmic load unit REOLOAD 300

water-cooled resistive load bank

Description

Example of a client-specific resistive load unit that consists of 15 resistance groups (liquid-cooled) and 4 rheostats with AC motor drive. All resistances are connected via contactors that are controlled via 24 VDC relays. Two stainless steel distributors are built in for connecting the water cooling.

All resistance groups can be hydraulically regulated or switched individually. All fittings for the cooling circuit are in stainless steel. The resistances and the control are connected to suitable terminations.

Advantages

  • Compact dimensions
  • Water-cooling
  • AC/DC loads freely configurable

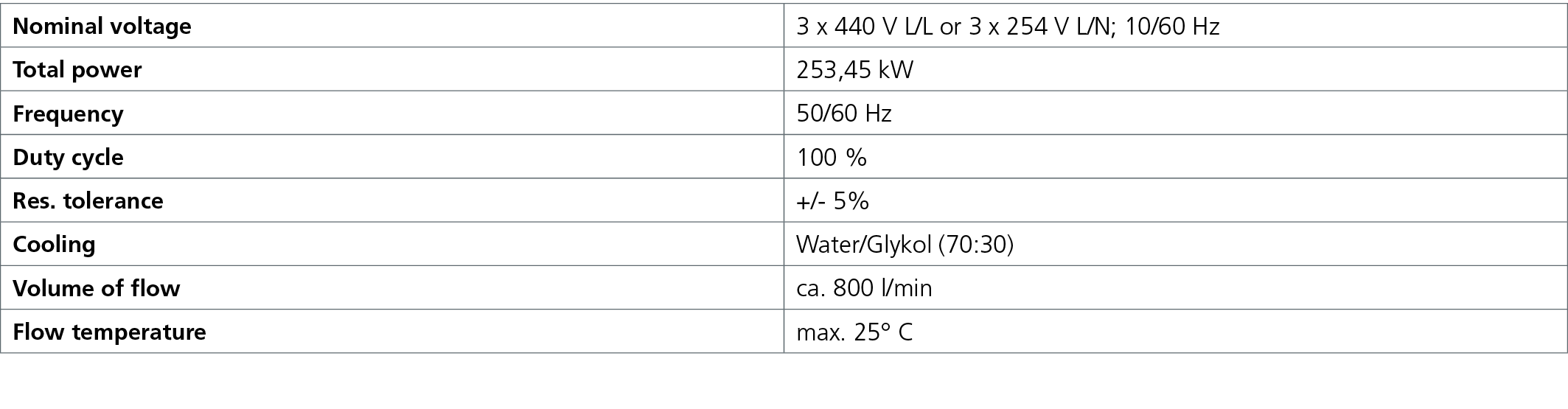

Technical data*

Please feel free to contact us for individual adjustment measures or accessories.
