Resistor REOHM BW 154
Max. continous power: 200 W
完整的目录
下载我们丰富的产品目录，发现更多REO产品
Datenblatt
Alle Daten und Konfigurationen finden sie in unserem Produktdatenblatt.
Resistor REOHM BW 154
Max. continous power: 200 W
Description
The braking resistor REOHM 154 protects the machine from a voltage rise in the intermediate circuit, if an electric machine operates as a generator (Electromotive brake). The current reduces also the speed of the machine.
Advantages
- kleine Abmessungen
- schneller Anschluss
- eigensicher
- Anpassung an jeden Frequenzumrichter
- wenig zusätzliche Montagefläche
- kompakte Bauform
- bei Überlast hochohmig
- stehende und liegende Bauform
- optional mit Temperaturschalter

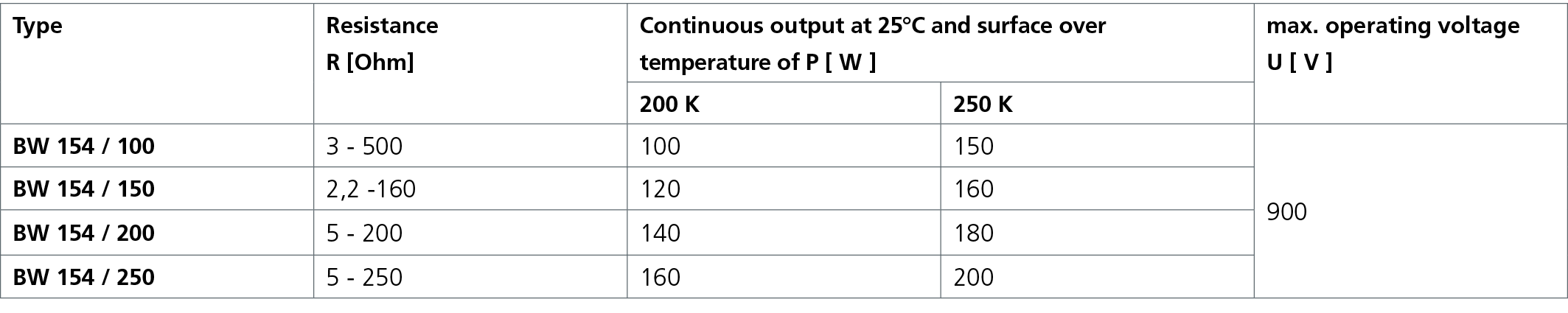

Technical Data
Performance
In the event of destruction, the resistance becomes high, so every series can be supplyd with a temperature switch. The specified performance values were with a horizontal position of the resistors in the air with a distance of min. 100mm to the ground. The performance values refer to the standard products with a normal tolerance of +/- 10% at an ambient temperature of 20 ° C.
