INDUCTIVE LOAD UNIT REOCHOKE 300/69
Inductive load units
完整的目录
下载我们丰富的产品目录，发现更多REO产品
Data sheet
All data and configurations can be found in our product data sheet.
INDUCTIVE LOAD UNIT REOCHOKE 300/69
Inductive load units
Description
The three-phase-inductive load consists of three iron-cored inductors, each with three tappings, and is used for testing static converters and switched-mode power supplies. The individual tappings are connected directly to the inductor. A REO DC closed loop current transformer is built in for each phase for measuring current.

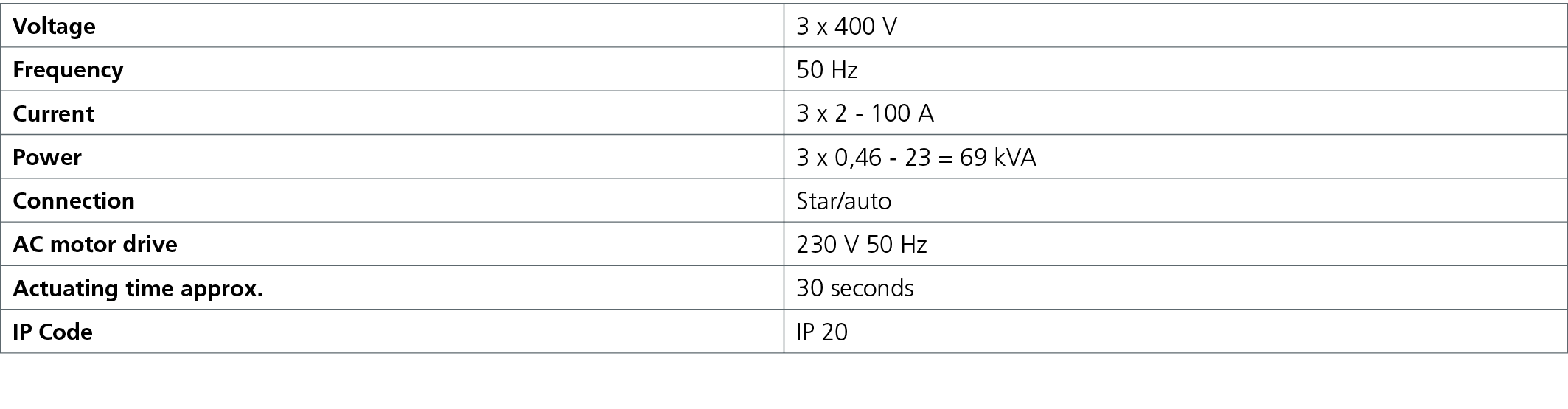

Technical specifications
