Railway transformer NTT 400 D

Onboard power supply transformer (Roof mounted)

REO Bahntransformator NTT 400 D

Railway transformer NTT 400 D

Onboard power supply transformer (Roof mounted)

Description

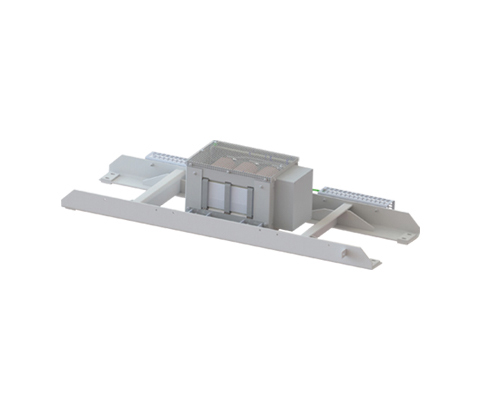

The REO transformer NTT 400 D is designed for on-board power supplies, which are fed by the auxiliary converter.The transformer NTT 400 D is the complete, ready to use-unit with transformer, mounting frame and housing. It is used to adjust the voltage and for galvanic separation of pulse-width modulated DC link voltage and the consumers of the electrical system. A corresponding sinusoidal filter must be connected between the transformer and the inverter.

The secondary-side load of the isolation transformer can be switchgears, rotating equipment , resistive loads or semiconductor power converters.The transformers are designed for the use in vehicles with AC or DC power (in inverter mode). This guarantees that REO transformers are optimally suited to your application. Our development methods emphasize maximum useful lifetime, cost/benefit optimization and safety.

Onboard power supply transformer can be custom designed. Are you interested in this product? Please contact us!

Besides the standard components for use in the converter, REO offers customerspecific products – as individual components or as a complete solution in a ontainer. The most important criteria in railway engineering are availability for operation and passenger safety. Here, REO offers customized solutions that we develop step by step in close cooperation with our client.

Advantages

  • Vibration and shock tested according to DIN 61373 Cat 1 Class B
  • High efficiency
  • Low idling losses
  • Reduced field scattering
  • Low noise
  • Reduced weight
  • High mechanical resistance
  • Natural Cooling
  • Pollution degree PD4
  • Various performance classes

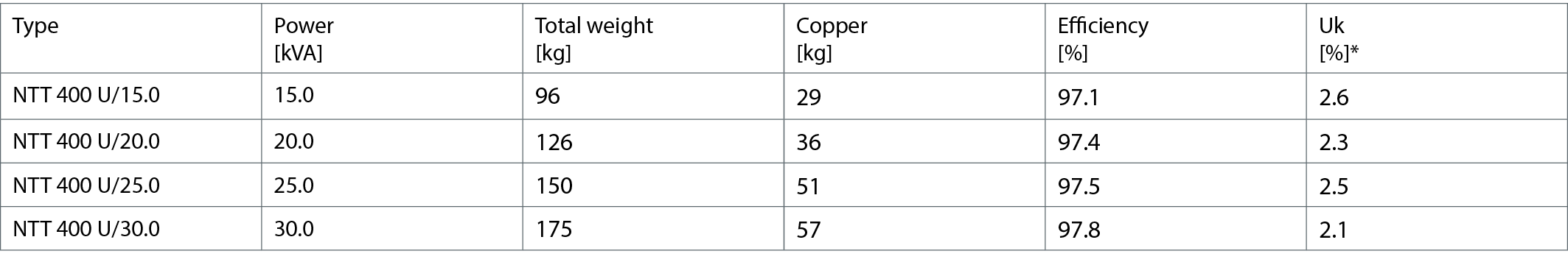

Technical specifications

  • Rated power : 10000 – 30000 VA
  • Input voltage : 3×440 V
  • Power. 10 – 30 kVA
  • Rated voltage

Primary:

  • Rated voltage: (Normal operation): 3×440 Veff 60 Hz
  • Rated voltage: (external power supply): 3×400 Veff 50 Hz
  • Rated voltage: (reduced operation): 3×345 Veff 47 Hz

Secondary:

  • Voltage: 3×230 Veff
  • Insulation class: F/H
  • Test voltage: EN 50124 / EN 60310
  • Operating temperature: -40°C … +55°C (optional +75°C)
  • Humidity: max. 95%
  • Pollution: PD 4
  • Vibration resistance: Cat.1 class A/B acc. to EN61373
  • Voltages: 24 / 42 / 110 / 230 / 400 / 690 Volt (Optional)
  • Switching group: Optional

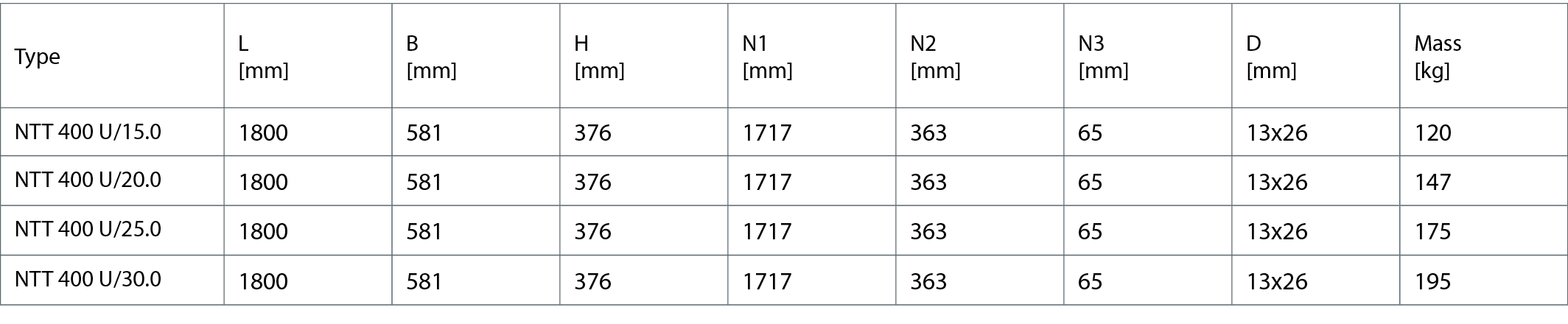

Dimensions in mm
