Test choke NPT 8929

Single-phase test choke

Description

These chokes are used in test laboratories as load chokes. They can be interconnected with each other. If these chokes used with appropriate resistors, a test under different cos (phi) is possible.

Advantages

  • Robust design
  • High flexibility
  • Compact design
  • Low losses

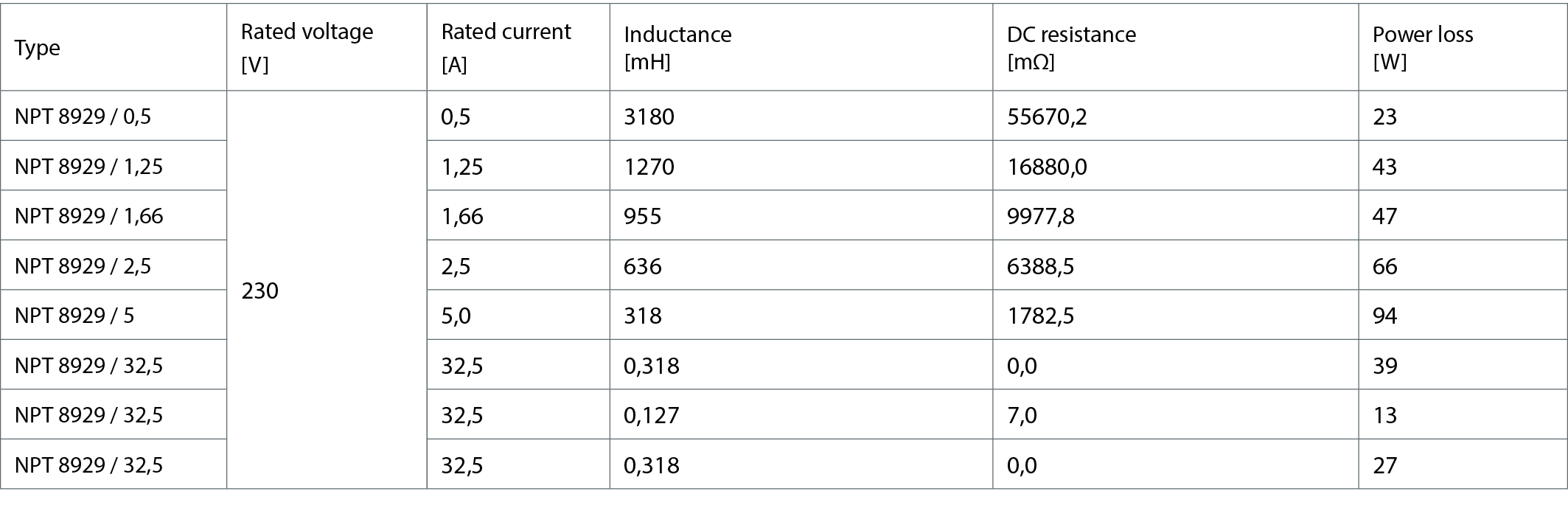

Technical Data

  • Insulation class: F at 40° C
  • Climaatic categorie: 25/085/21 DIN IEC 68 Part 1
  • Max. winding temperature: 125° C
  • Protaction rating: IP00
  • Nominal Voltage : 230 V
  • Rated current : 0,5 – 32,5 A
  • Inductance : 0,127 – 3180 mH

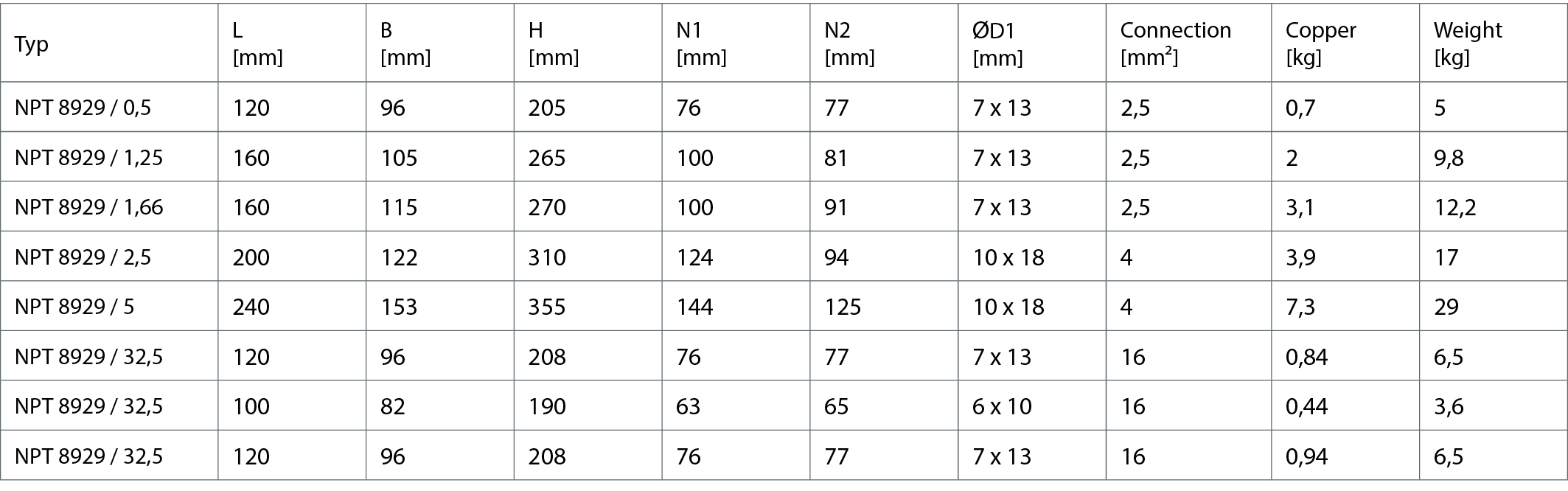

Dimensions in mm
