Test choke NPT 892

Single-phase DC test choke

Description

Switches must be pass many different tests during the approval phase. Some of these tests involve the switching behavior under different load conditions, the switch is tested on nominal load, overload and at many cos?. Additionally the switch will be checked on switch on and switch off procedures. The paramters must be everytime the same during this tests.

In the past, air chokes were used as inductive loads, since these do not saturate. Air chokes are larger and have a stronger leakage field than comparable core chokes with corresponding magnetic energy.

Advantages

  • Adapted linearity, no saturation in the workspace
  • Several taps, just a few chokes instead of many are needed
  • Adjusted winding resistance, thereby reducing resistive loads
  • Designed for continuous load and short-term exposure
  • Optimizing weight and dimensions, lower costs
  • High voltage, standard up to 1000V

Technical Data

  • Insulation class: F bei 40° C Umgebung
  • Climatic categorie: 25/085/21 DIN IEC 68 Teil 1
  • Max. winding temperature: 140° C
  • Cooling: AF
  • Protaction rating: IP 00
  • Nominal Voltage : 24 V
  • Rated current : 0,2 – 4 A
  • Inductance : 160 – 125000 mH

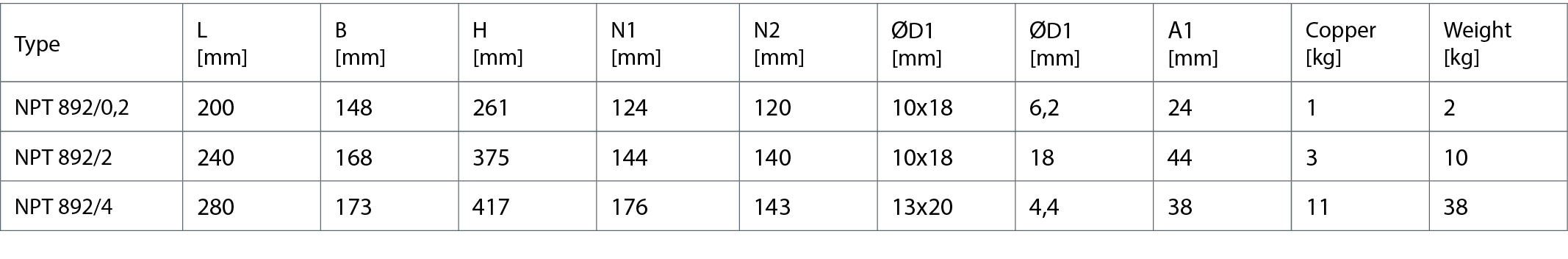

Dimensions in mm
