EMC Filter N CNW 114
Three-phase mains filters with increased attenuation, 3 lines
完整的目录
下载我们丰富的产品目录，发现更多REO产品
Certifications
EMC Filter N CNW 114
Three-phase mains filters with increased attenuation, 3 lines
Description
When electronic components are panel-mounted in a cabinet, in the most of the cases the same circuits with different power are required.To avoid pemanent modifications of the apertures, several power ranges should ideally be combined. The filters of this series, within the most important power range, have equal fixing dimenions, so that the filters can be replaced.
Advantages
- compact construction
- easy installation
- low temperature rise
- touch-proof terminals
- IT-versions possible
Typical applications
Frequency converters for motor drives, wind power installations and power supply units

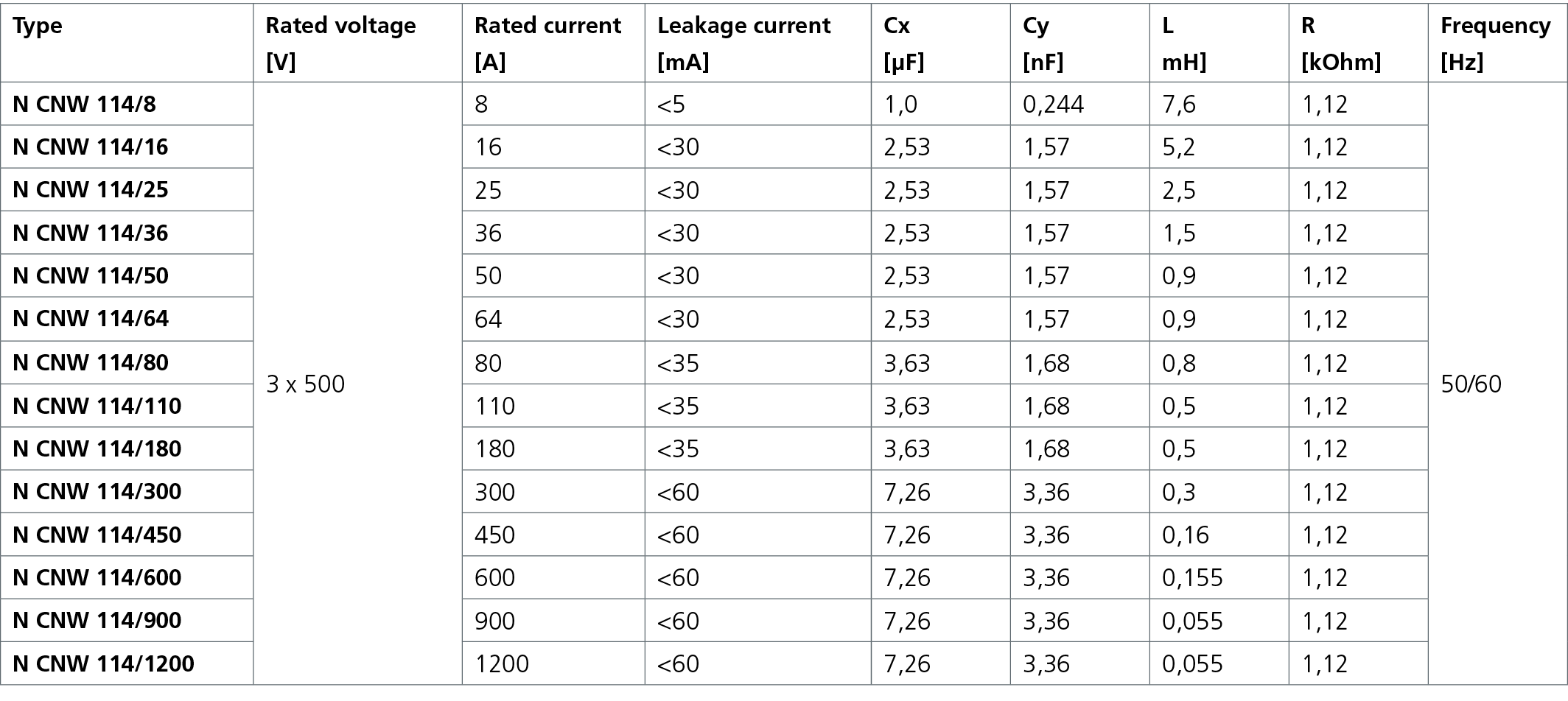

Technical specifications

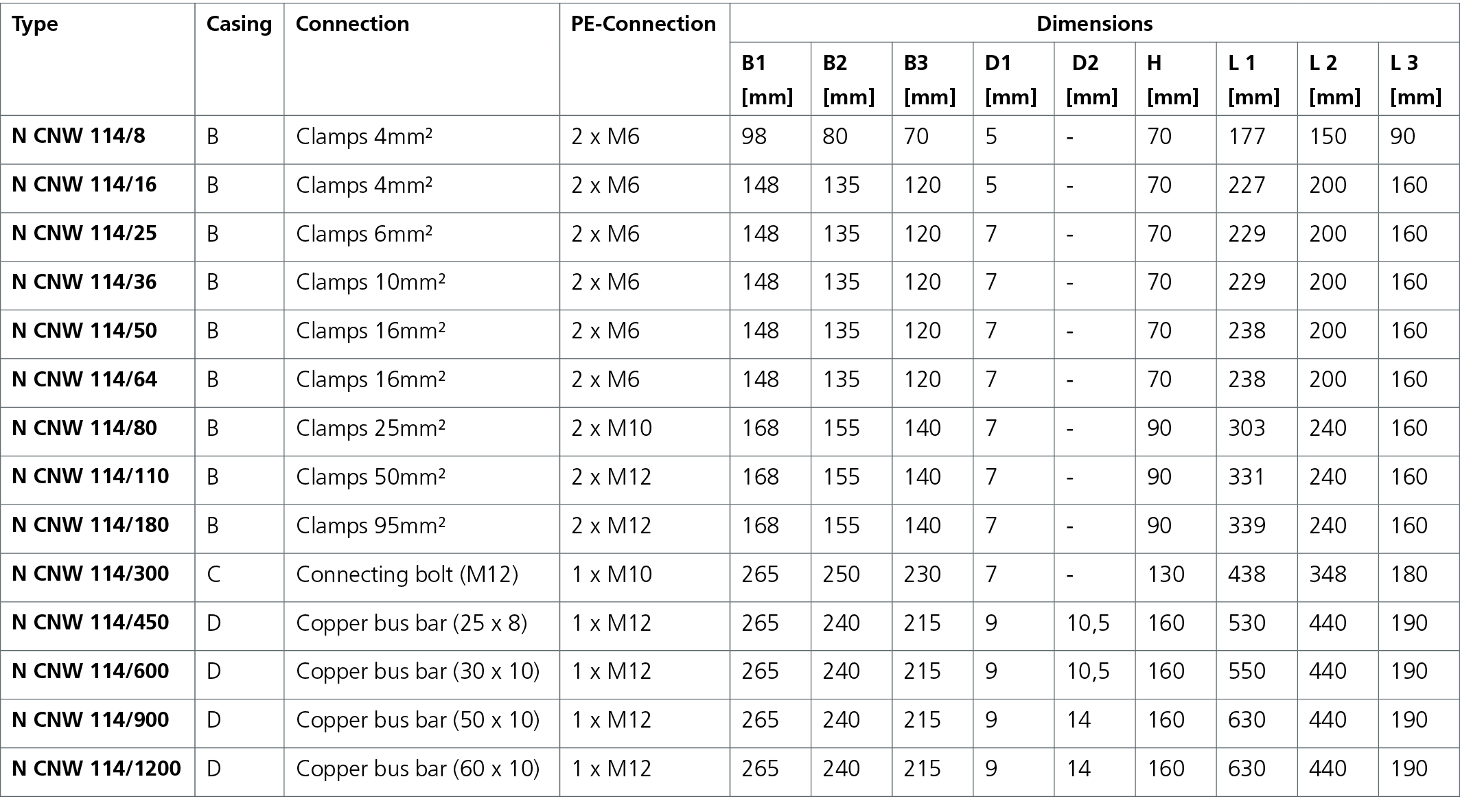

Dimensions in mm
