Sinusoidal filter CNW 931
Single-phase sinusoidal filter 6,15% Uk
Description
Smoothing of the current and voltage in order to realize long connecting paths.
Advantages
- Low temperature rise
- Low noise
- Manufacturing according to UL Insulation System
- E 251513 possible
- Easy installation
- Adaptation to motor cables up to 1000 meters possible
- Saving of the shielded cable possible
Typical applications
Drive technology for motor drives, e.g. mechanical engineering elevators / escalators pumping materials, handling, ventilation and climate technology, robot technology automation technology, Power supply and wind turbines
Technical specifications
- Ambient temperature: 50 °C
- Protection rating: IP 00
- Insulation class: F
- Linearity: LN bei 1,2 x IN u. ≥ 0,8 x LN bei 1,5 x IN
- Test voltage: 3 kV
- Rated voltage: 230 V
- Uk: 6.15 %
- Overload category: 2
- Pollution degree: 2
- Cooling: AN
- Switching frequency: ≥ 4 kHz
- Current ripple: ≤ 20 % bei 4 kHz

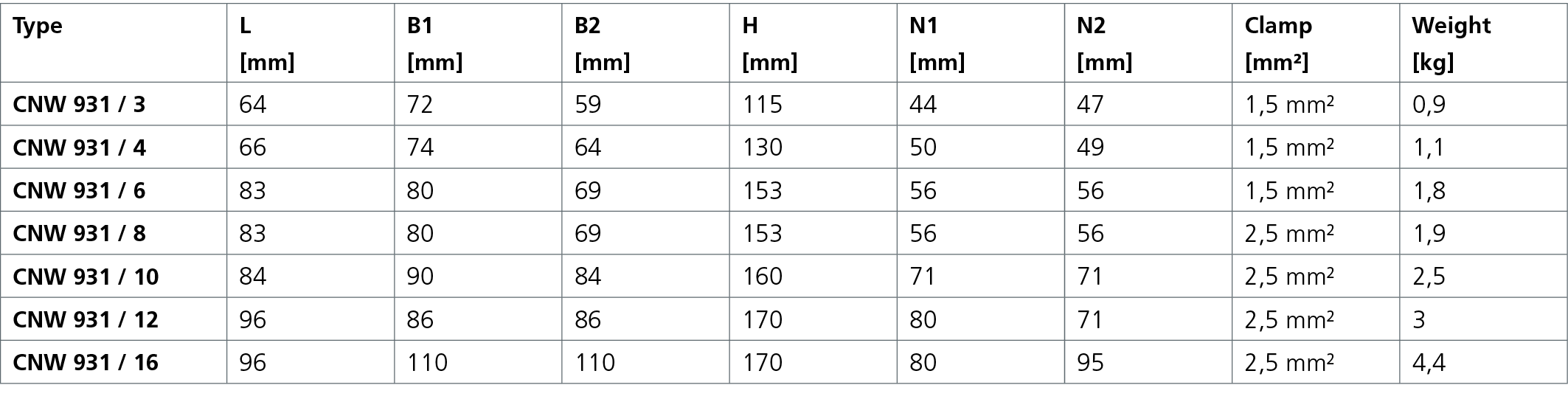

Dimensions in mm
