Power Noise Reduction – save energy costs.
The DC-link choke is used for smoothing the DC link current and to reduce mains harmonics in voltage source inverters.

The typical combinations of rectifiers and capacitors strains the supply network significantly. For functional reasons, the current consumption of the power supply or the inverter is not sinusoidal but pulsed at the moment of maximum voltage. DC-link chokes reduce the harmonics and relieve the supply network similar to the mains choke. In addition, the DC-link choke attenuates charging current peakssurges of the DC-link capacitors. By using a DC-link choke the supply network is less burdened with harmonic reactive power.

Improvement of the efficiency of a converter (Power Factor Correction). Starting currents and current peak are attenuated up to 70%. Mains chokes help to comply with international power quality standards IEEE 519 or EN 61000-3-2.

• Reduction of harmonics
• Attenuation of current spikes of up to 70%
• Compact design
• Advantages over the mains choke:
• Smaller size
• Lower cost of materials / Price
• Smaller power loss
• Production according to UL insulation system
• E251513 possible

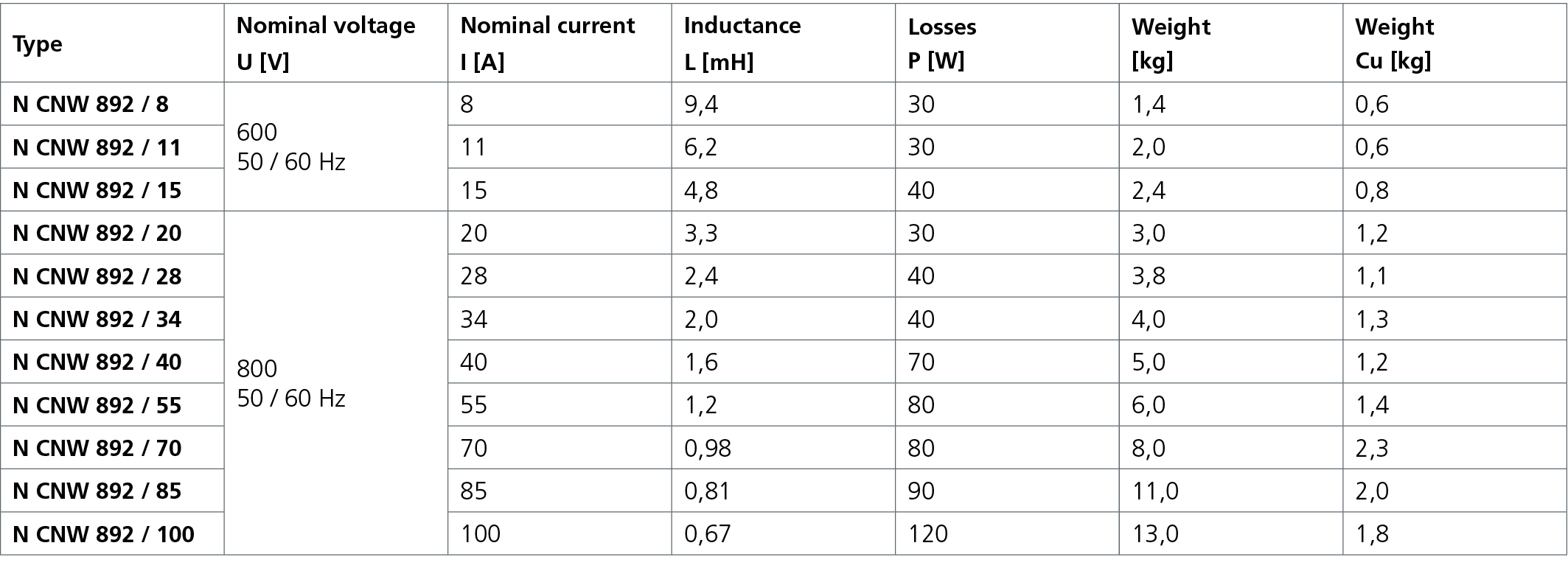

• Rated voltage: U ≤ 800 V
• According to: EN 60289 / EN 61558
• Test voltage: L-PE 4000 V, AC/50Hz, 60s
• Insulation class: T40/F
• Protection rating: IP00
• Climatic categorie: DIN IEC 60068-1
• Overload: 1,5 x INenn 1 min / h

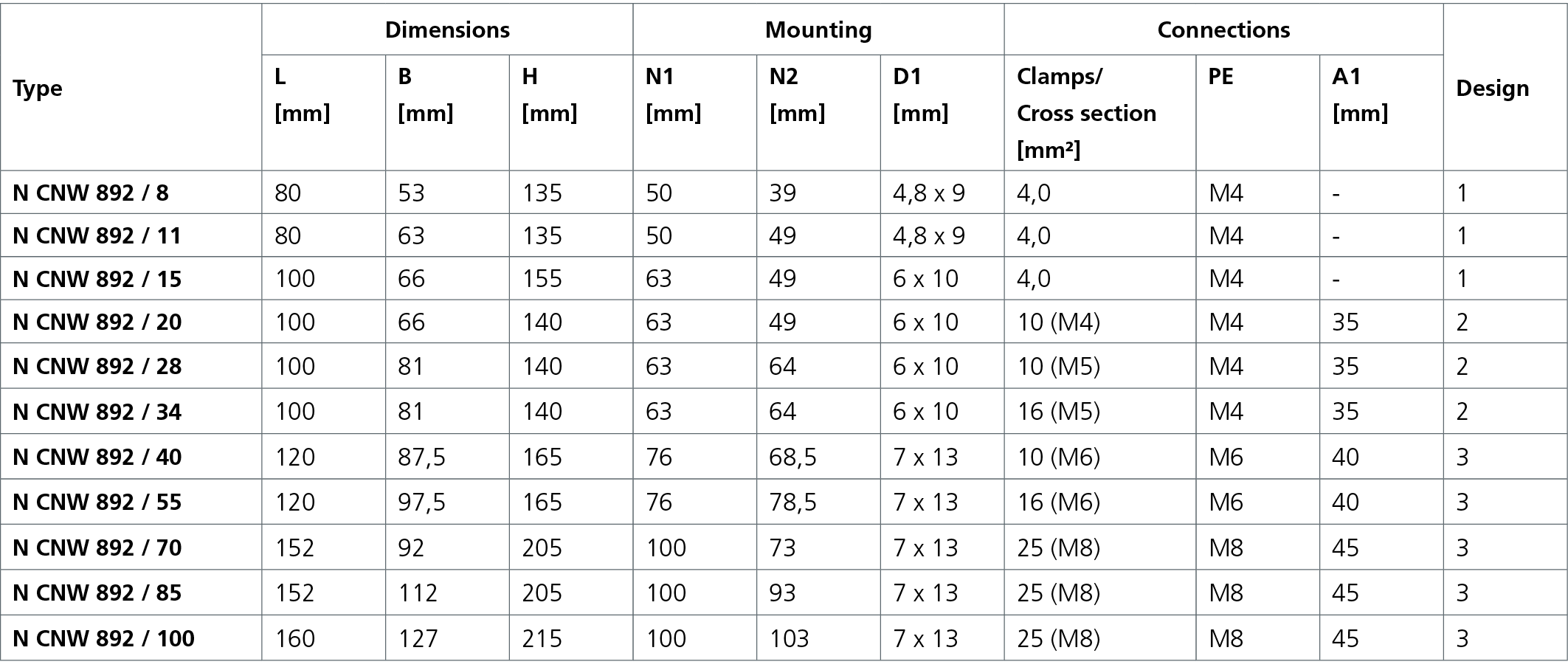

• Design: standing on foot angle
