Power Noise Reduction – save energy costs.

The DC-link choke is used for smoothing the DC link current and to reduce mains harmonics in voltage source inverters.

The typical combinations of rectifiers and capacitors strains the supply network significantly. For functional reasons, the current consumption of the power supply or the inverter is not sinusoidal but pulsed at the moment of maximum voltage. DC-link chokes reduce the harmonics and relieve the supply network similar to the mains choke. In addition, the DC-link choke attenuates charging current peakssurges of the DC-link capacitors. By using a DC-link choke the supply network is less burdened with harmonic reactive power.

Improvement of the efficiency of a converter (Power Factor Correction). Starting currents and current peak are attenuated up to 70%. Mains chokes help to comply with international power quality standards IEEE 519 or EN 61000-3-2.

Drive systems for motor drives:
Mechanical engineering, Elevators / escalators, Pipes, Conveyor technology, Ventilation and air conditioning, Robotics, Automation technology

Power supplies, Wind turbines

• Reduction of harmonic harmonics
• Attenuation of current peaks up to 70%
• compact design
• Advantages compared to the mains choke:
  • smaller size
  • Advantages compared to the mains choke:
  • Lower material costs / price
  • lower power dissipation
• Production according to UL insulation system E251513 possible

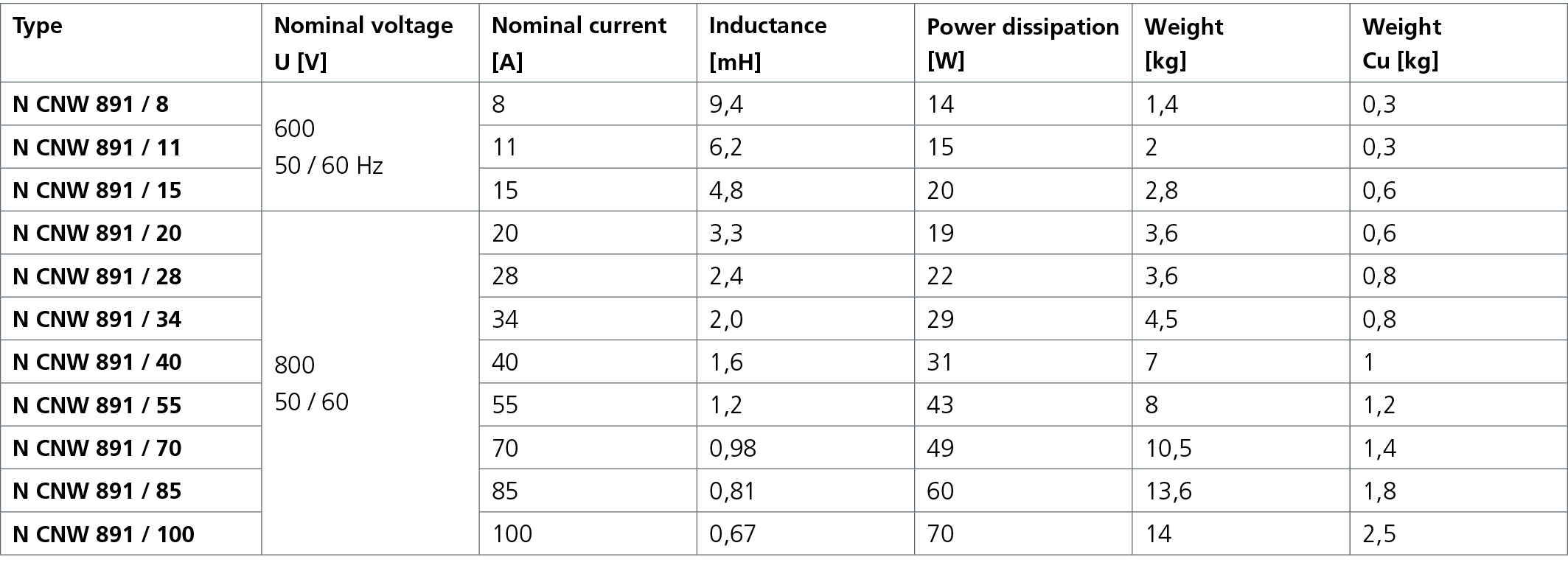

• Nominal voltage: U ≤ 600 V
• Compliant: EN 60289 / EN 61558
• Test voltage: L-PE 4000 V, AC/50Hz, 60s
• Insulation class: T40/F
• Ingress protection class: IP00
• Climate category: DIN IEC 60068-1
• Overload: 1.5 x I_Nominal 1 min / h

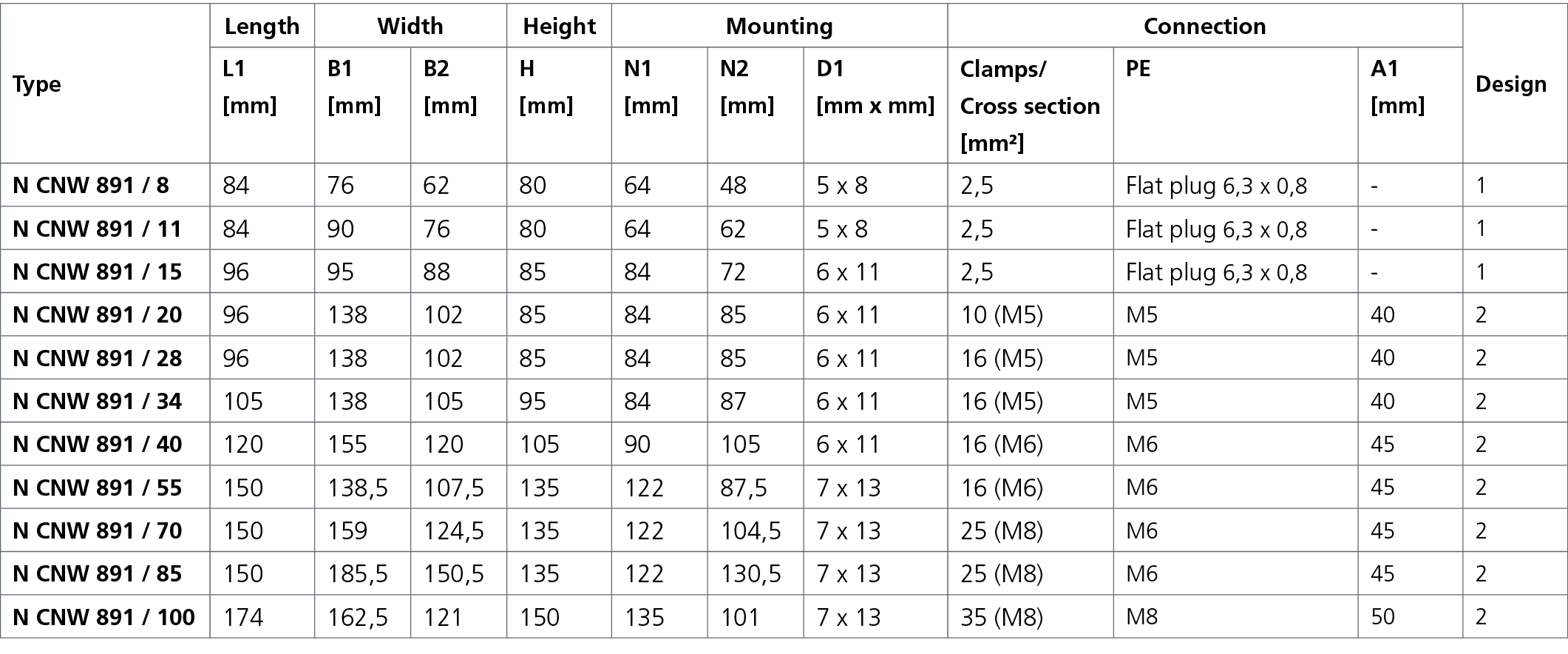

• Type of construction: standing on foot angle
