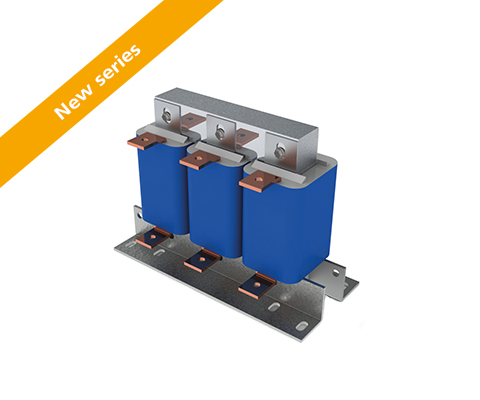

DV/Dt -Choke N CNW 806
Three-phase-dv/dt filter
完整的目录
下载我们丰富的产品目录，发现更多REO产品
Data sheet

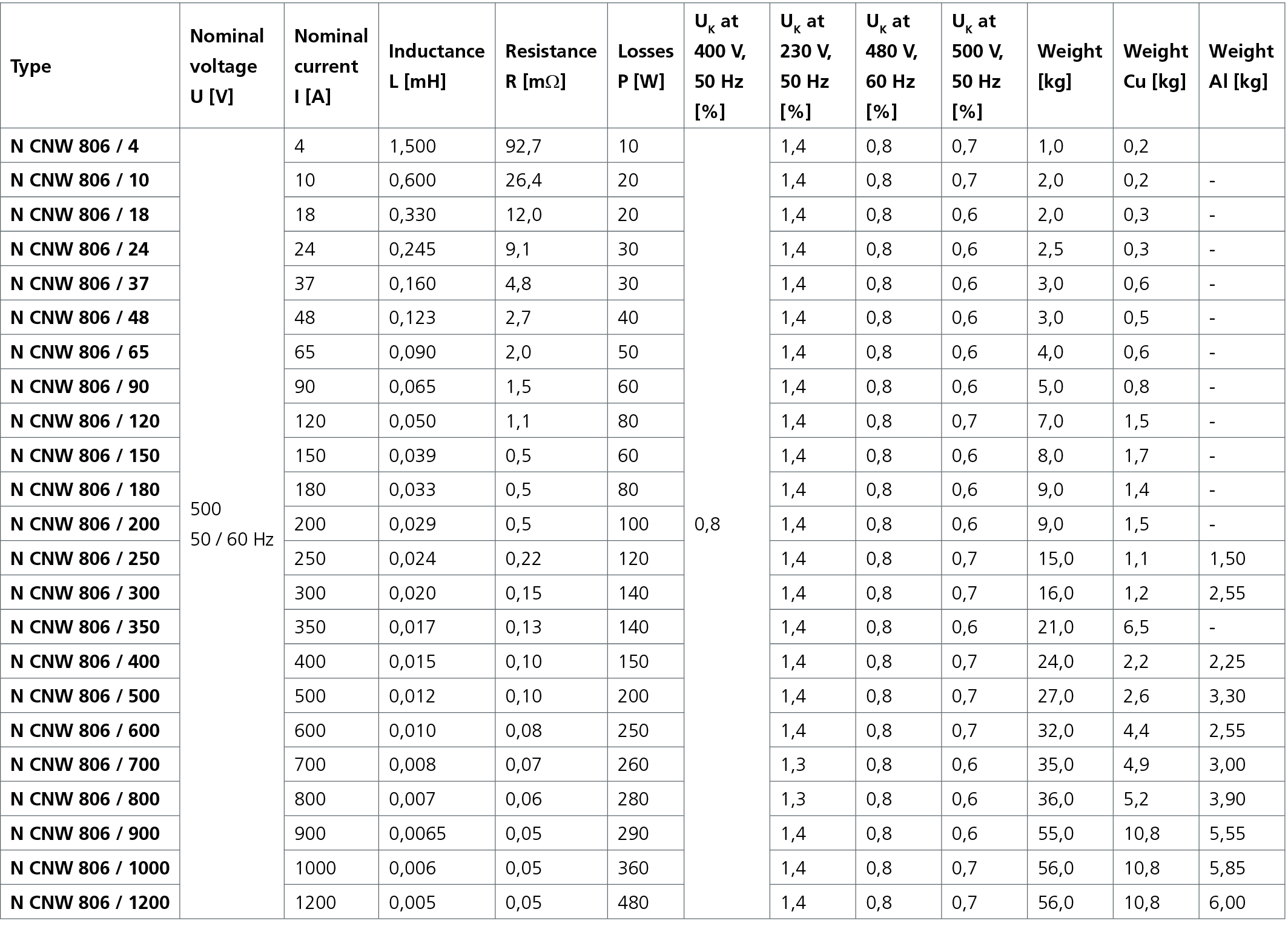

All data and configurations can be found in our product data sheet.
Certifications
DV/Dt -Choke N CNW 806
Three-phase-dv/dt filter
Description
NEW PRODUCT RANGE!
The new series not only scores with a faster delivery time, but also with the conservation of resources and increased efficiency.
Reduce voltage rice to < 500V/µs – electrical consumrs and insulation will protected with low costs.
A simple and inexpensive method for reducing the rate of voltage rise is to use a du / dt filter or throttle. It dampens the voltage rise to acceptable values and prevents overvoltages on long supply lines.
Losses and heating are minimized and the leakage current reduced. By limiting the rate of voltage rise, the motor insulation is protected and thus prolongs the life.
Also, the electromagnetic interference can be reduced in the radiation range of 1 MHz to 30 MHz.
Advantages
- Protection for electrical consumers
- Limitation of the voltage rise on <500V / us
- Extended service life of electrical consumers
- Low leakage currents on the motor
- Reduced losses
- Easy construction
- Compact design
- Production according to UL insulation system E251513 possible
Typical applications
Drive technology, frequency, converters, Railway, E-Mobility and Test systems
Technical specifications
- Rated voltage: U ≤ 3 x 500 V
- Reduce voltage rice to <500V/µs
- Rotating field frequency: 0 – 60 Hz
- Switching frequency of the converter: up to 150 A > 500V/µs
- Field frequency: 0 – 60 Hz Drive
- According to: EN 60289 / EN 61558
- Test voltage: L-L 2500 V, AC/50Hz 60s; L-PE 2500 V, AC/50Hz 60s
- Insulation class: T40/F
- Protection rating: IP00
- Climatic categorie: DIN IEC 60068-1
- Overload: 1,5 x I Nenn1 min / h
- Ambient temperature: 40 °C
- Design: standing on foot angle

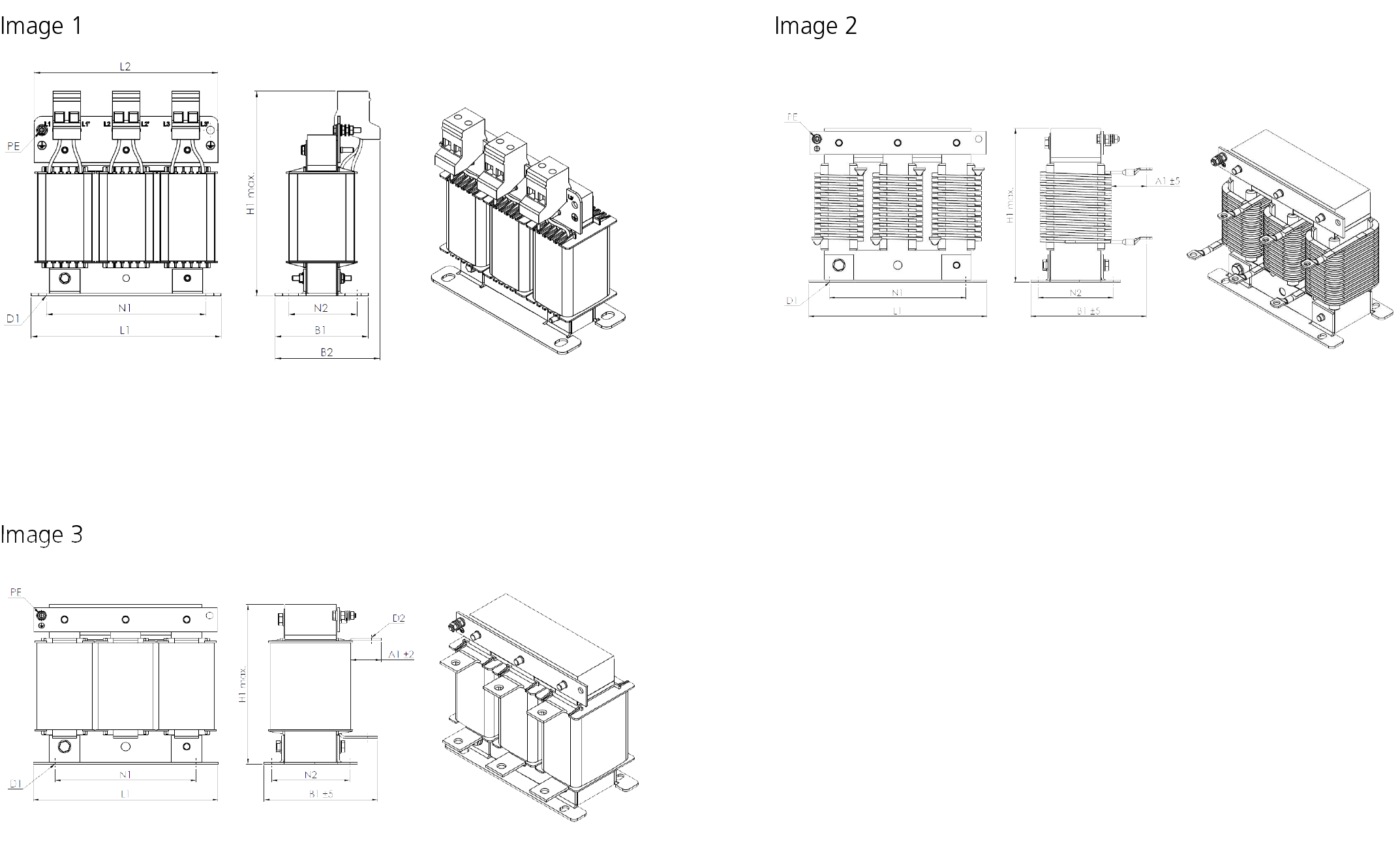

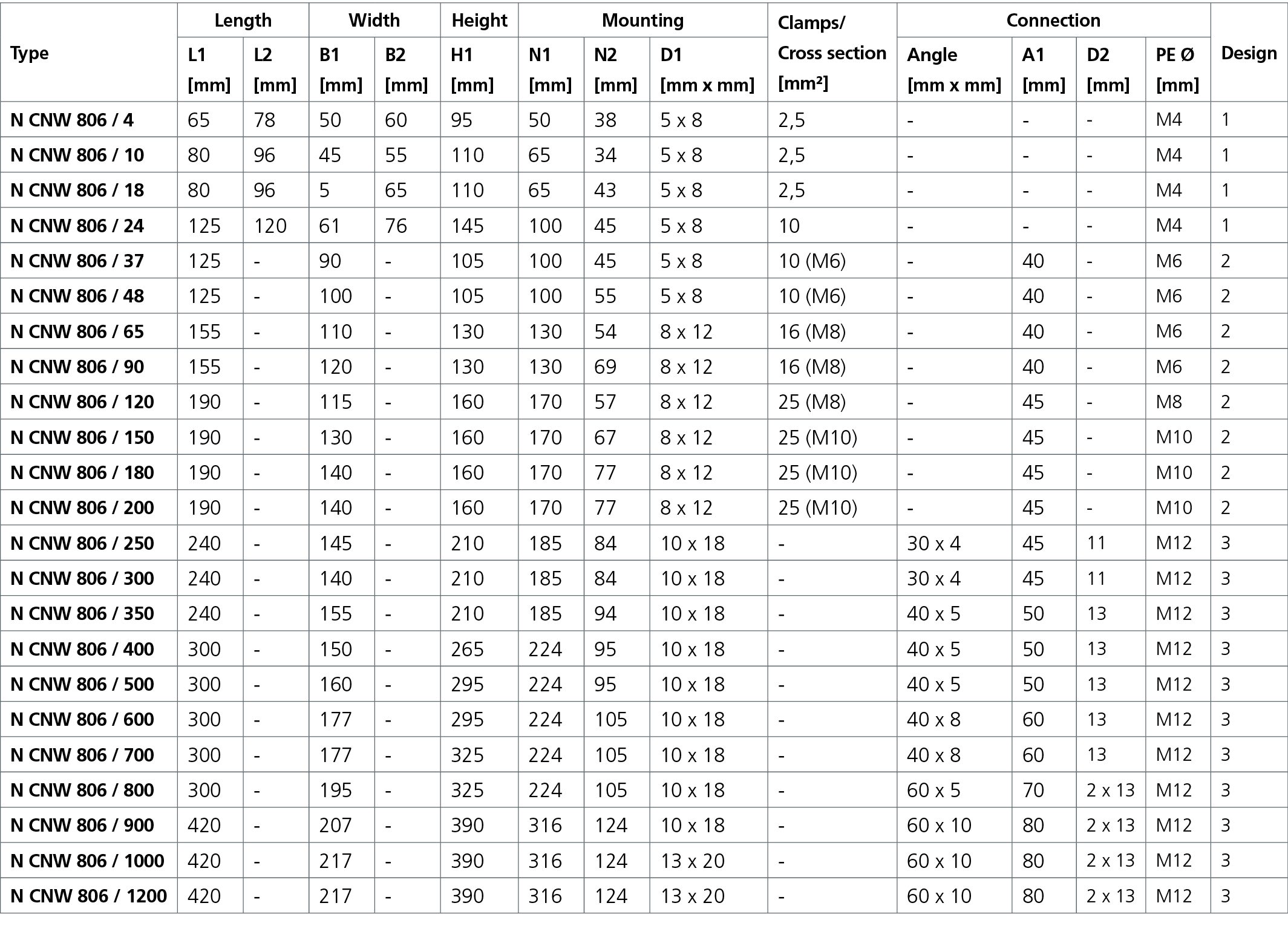

Dimensions in mm
