EMC-Filter REO CNW 304
Filtercombination (single stage)
Description
By using a mains choke the upper harmonics are reduced and the starting current is limited. This increases the efficiency and discharges the leads.
Advantages
- Easy installation
- Small footprint
- Reduction of cable looms in control panels
- Attenuation of higher harmonics
- Low hum vacuum impregnated choke
Reduced start-up current - The choke is rated for a short-circuit voltage of 4%, at rated current, as standard
Typical applications
Interference suppression of frequency converters with IGBTs and reduction of harmonics (conforming to VDE 0160/EN 61800-3 class B)

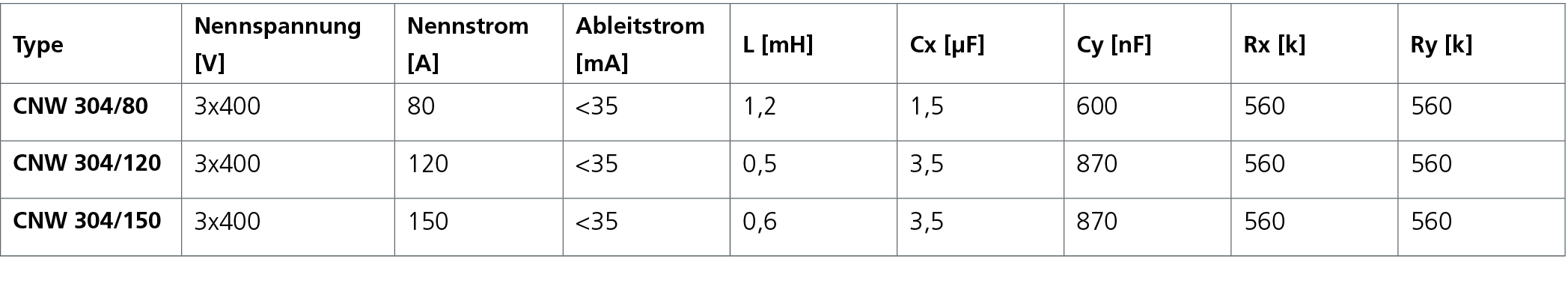

Technical specifications
- Conforming to: VDE 0565-3 / IEC 950 / UL 1283
- Test voltage: L-L 2100 V, DC 1s, L-PE 2700 V, DC 1s
- Overload: 1,5 x I 1 min/h
- Climatic category: DIN IEC 68 Teil 1 25/085/21

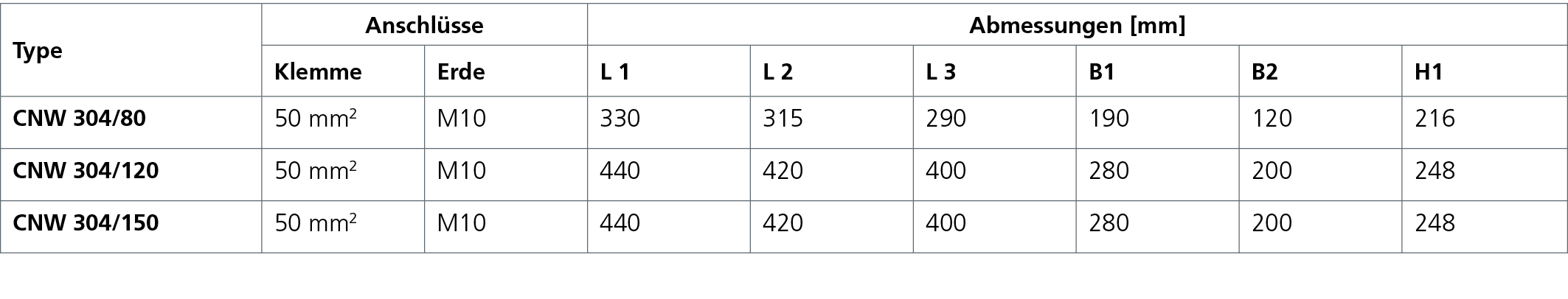

Dimensions in mm
