EMC-Filter CNW 173
DC filter for photovoltaik (2 lines)
Description
The REO sensors use a Hall-effect device in their magnetic circuit to measure the primary current, which is electronically converted to a proportional output current.It measures frequencies up to 150 kHz. The current sensors are integrated into the filter and are ready for connection. There is no additional installation effort required. Attention! This option will change the mechanical dimensions of the filter!
Advantages
- protection of solar cells from high frequency
- noise generated by the inverter
- designed to conform to existing and planned
- optional with current transformer
- compact construction
- low temperature rise
- universal protection for all inverters
- optional anti-surge protection
Typical applications
The DC-filter surpresses grid-bound troubles of inverters for renewable energies like solar and wind power.

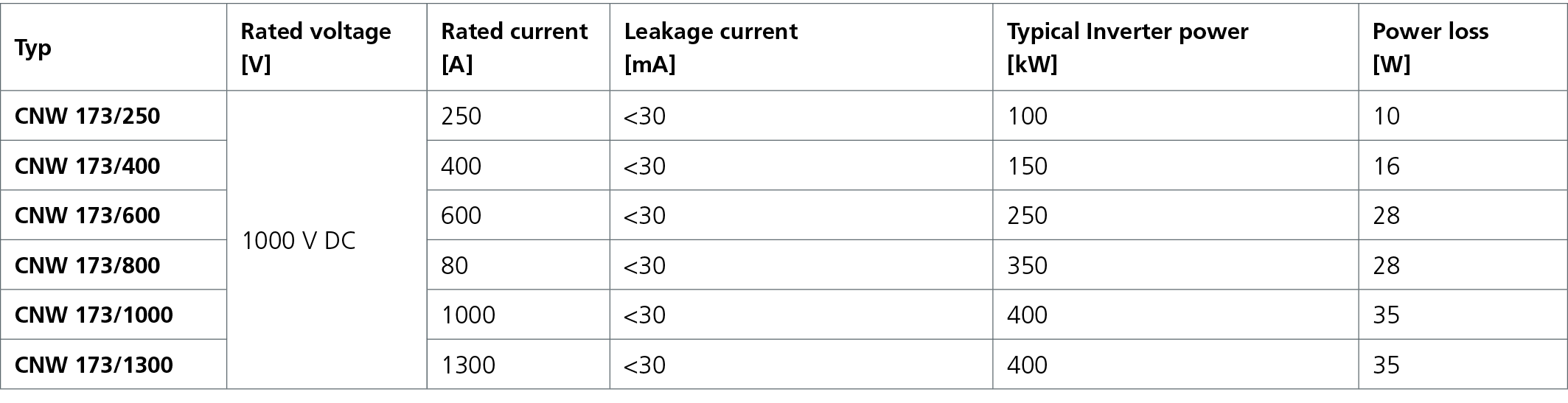

Technical specifications
- Conforming to: VDE 0565-3/ IEC 950/ UL 1283
- Test voltage: L-L 3000 V, DC 1 s; L-PE 3000 V, DC 1s
- Climatic category: DIN IEC 60068-1
- Overload: 1,5 x INenn 1 min / h
- Nominal Voltage : 1000 V
- Rated current : 25 A
