When electronic components are panel-mounted in a cabinet, in the most of the cases the same circuits with different power are required.To avoid pemanent modifications of the apertures, several power ranges should ideally be combined. The filters of this series, within the most important power range, have equal fixing dimenions, so that the filters can be replaced.

• compact construction
• easy installation
• low temperature rise
• touch-proof terminals
• very good attenuation in a wide frequency spectrum
• IT-versions possible
• UL approval for CNW 114/8 up to CNW 114/600 A (doesn´t apply to the 690 V version)

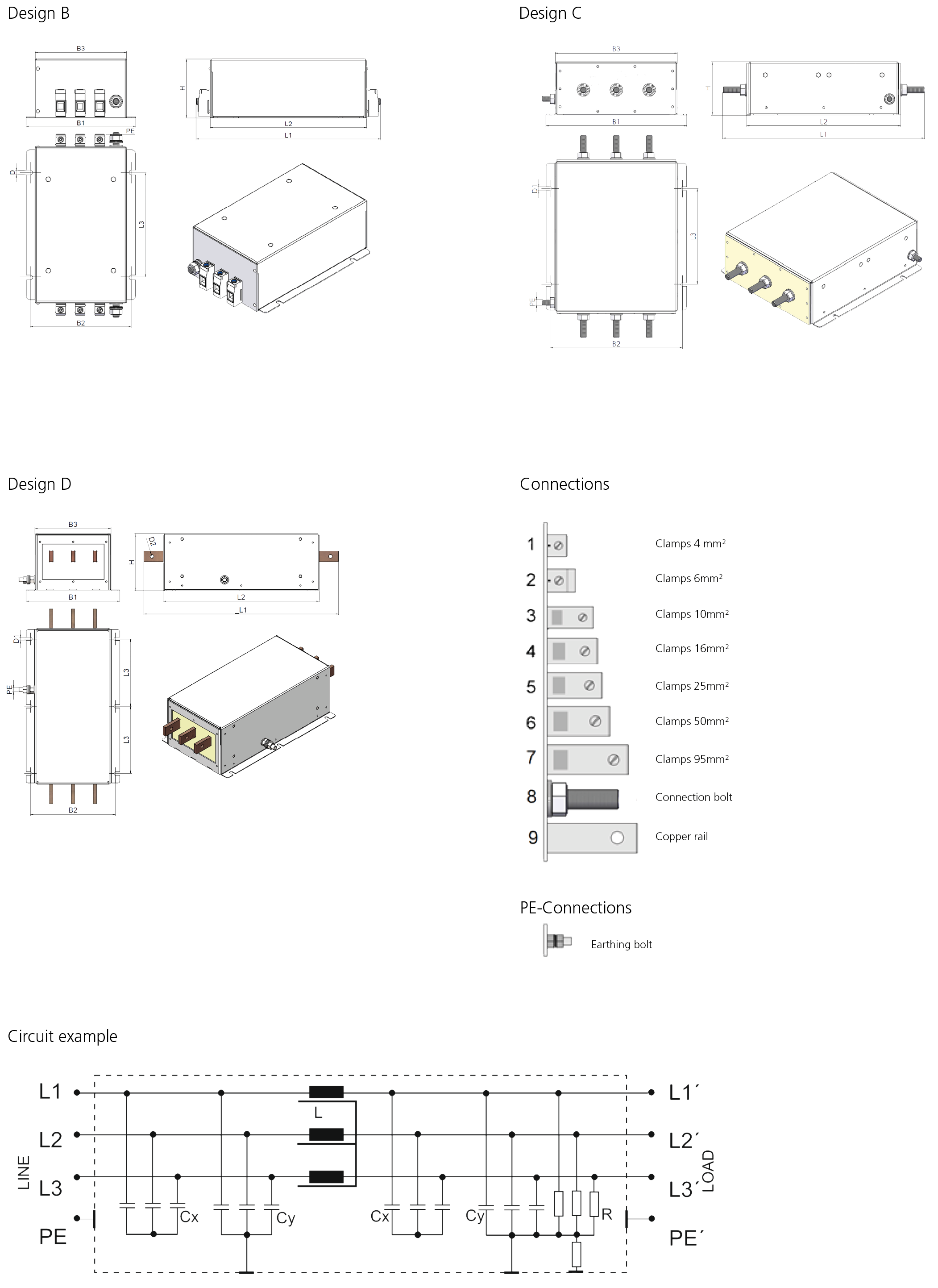

Dimensions in mm
